Hi Friends,
This post helps you in creating Multi Subnet Always ON in Linux Environment. Frankly speaking I had so many hurdles however I achieved this.
The problem is I don't have much knowledge on Linux unlike Windows where I do know how thinks workout.
As this being multi subnet the problem is all about how to accomplish connectivity between nodes .
The ideas that popped in my mind are
1) Achieving Routing between the 2 nodes using Router (another VM with Linux )-->It didn't work
2) using Azure VM's by configuring VNET to VNET (This will work but I don't have subscription)
3) Adding Linux machines to Windows Active Directory and then configuring Routing (It did work)
In the past I wrote a post on how to perform multi subnet in Windows and below is the link
https://www.chiranjeevivamsydba.com/2018/11/multi-subnet-always-on-scenarios.html
My post is truly inspired from Edwin Sarmiento 5 part series (MSSQLTIPS.COM). This is however single subnet Always ON.
The Master (Edwin) has given almost all the details hence I don't want to go through all the details. I will share just the extra steps that are required to perform Multi Subnet.
As said I am not an Linux Expert hence I installed 3 VM's on my laptop
First VM: Windows Domain server with 2 network cards (192.168.81.1) and (192.168.82.1)
Second VM: Linux CENTOS 7 with GUI support
Third VM: Linux CENTOS 7 with GUI support
One problem is we need to configure Manual IP Address to get this work. But before doing this we need to download below features.
1) SQL Server 2019
2) SQL Server HA
3) pacemaker software
4) install Active directory related software's (As we need to add our Linux Machines to Windows Domain server
5) Oracle Virtual Box Guest Additions (As we need to copy the commands between our Host and virtual machines)
Also I would like to warn you on one more thing at the time of creation of virtual machines (Linux) please make sure you create bigger partitions as I ran out space on root folder.
As the master(Edwin) explained everything in detail I will not reinvent the wheel .
I will just share my Environment details and the extra steps for Multi Subnet

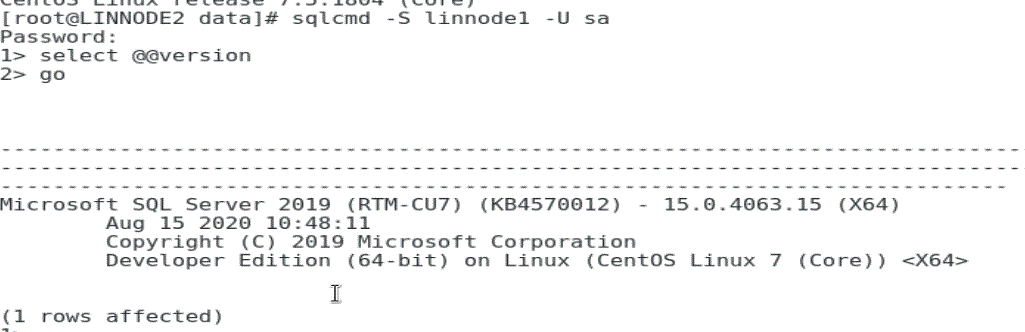

As you can see I am on SQL server 2019 and when it comes to my IP configuration I have
LINNODE1 with (192.168.81.10) and LINNODE2 with (192.168.82.10)
After you have configured all the steps mentioned by Edwin in his 5 part series we need to export Cluster Information Base in to a text file using the below command and
sudo pcs cluster cib cib.txt
Then you need to make the changes highlighted(in red) and push it back by running
sudo pcs cluster cib-push cib.txt
<primitive class="ocf" id="vip1" provider="heartbeat" type="IPaddr2">
<instance_attributes id="vip1-instance_attributes1">
<rule id="Subnet1-IP" score="INFINITY">
<expression id="Subnet1-Node1" attribute="#uname" operation="eq" value="linnode1"/>
</rule>
<nvpair id="vip1-instance_attributes-ip" name="ip" value="192.168.81.20"/>
</instance_attributes>
<instance_attributes id="vip1-instance_attributes2">
<rule id="Subnet2-IP" score="INFINITY">
<expression id="Subnet2-Node1" attribute="#uname" operation="eq" value="linnode2"/>
</rule>
<nvpair id="vip1-instance_attributes-ip2" name="ip" value="192.168.82.20"/>
</instance_attributes>
<operations>
<op id="vip1-monitor-interval-10s" interval="10s" name="monitor" timeout="20s"/>
<op id="vip1-start-interval-0s" interval="0s" name="start" timeout="20s"/>
<op id="vip1-stop-interval-0s" interval="0s" name="stop" timeout="20s"/>
</operations>
</primitive>
I will show you where my resources are running before the failover
Now perform a manual failover using the below command
